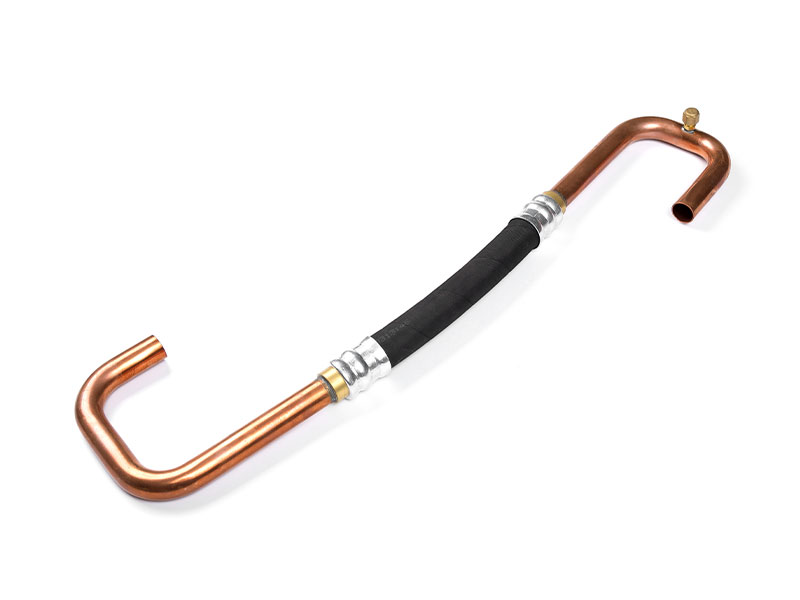

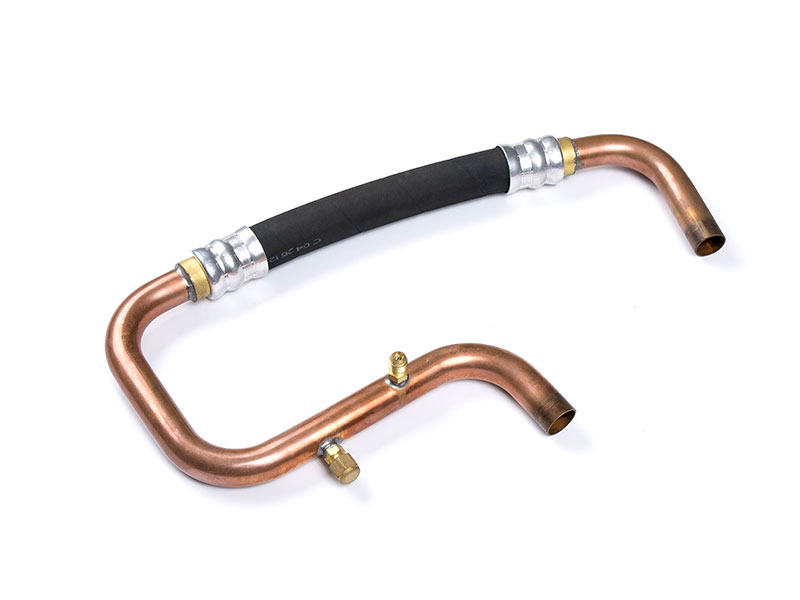

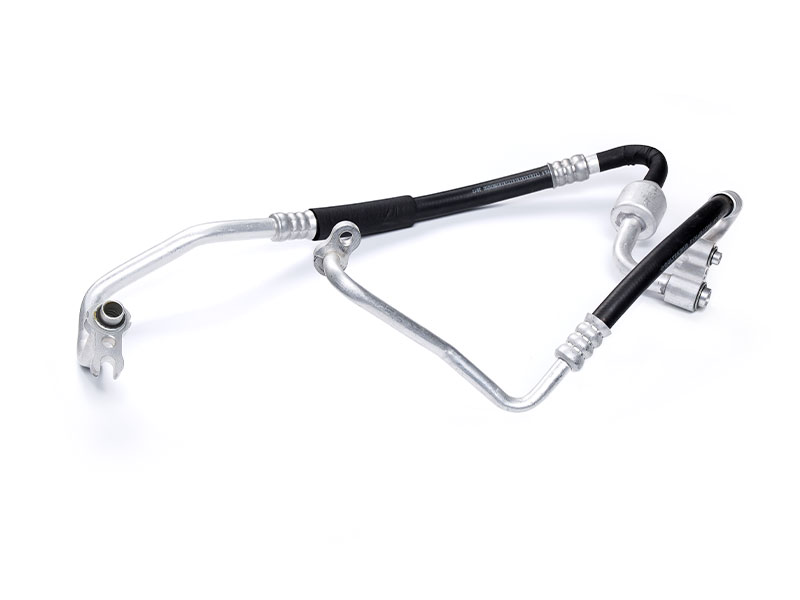

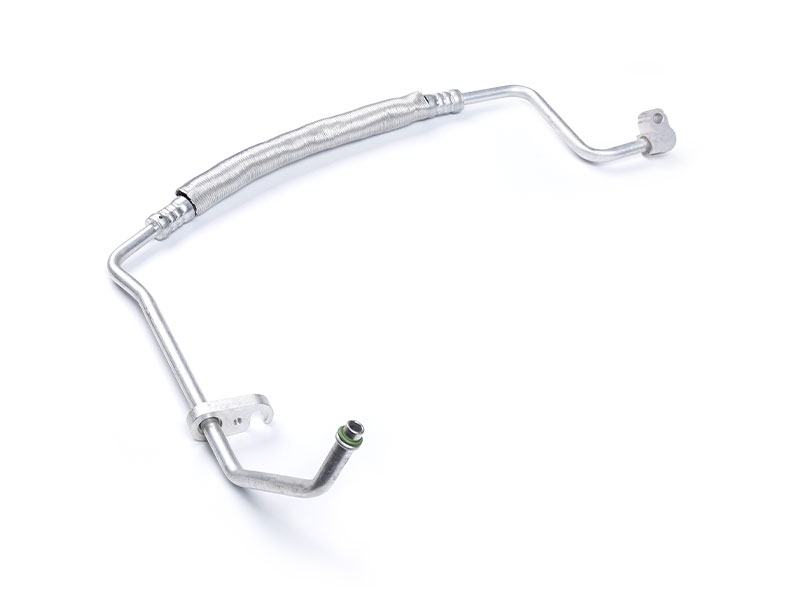

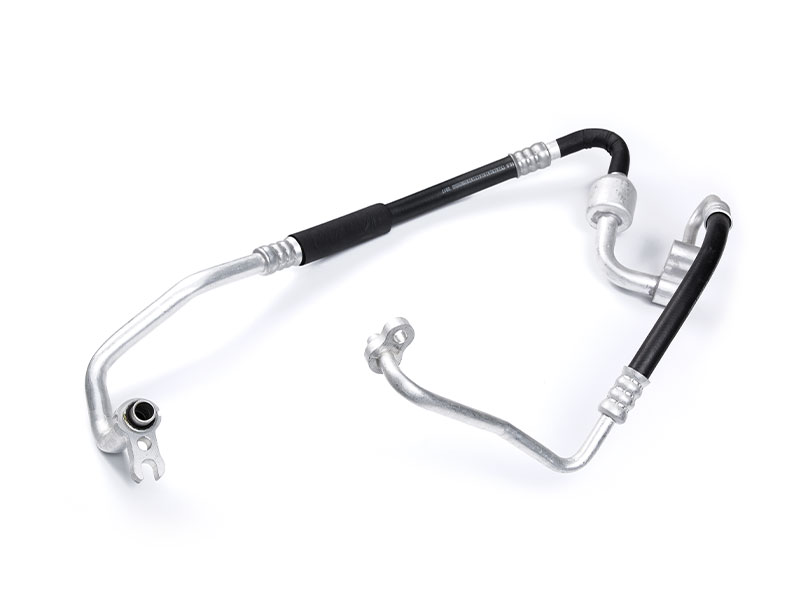

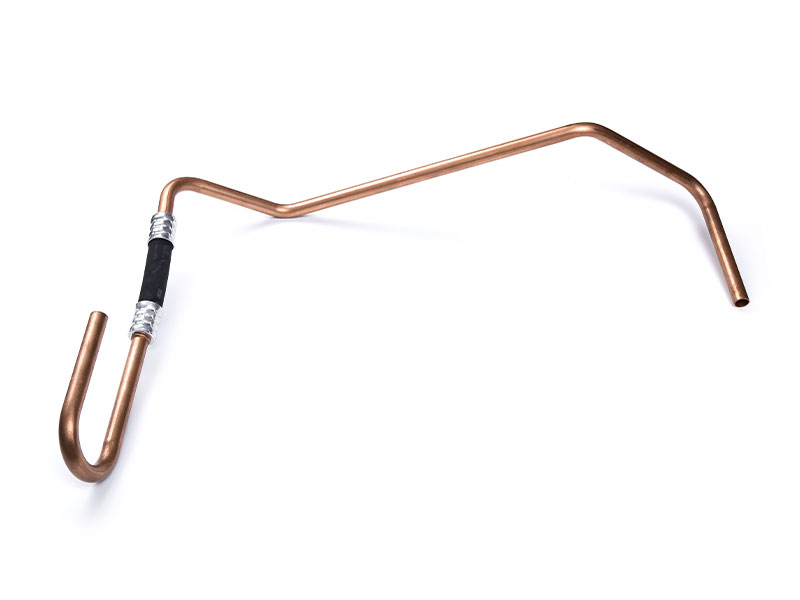

Air Conditioning Hose For Bus

  • Air Conditioning Hose For Bus
  • Air Conditioning Hose For Bus
  • Air Conditioning Hose For Bus
  • Air Conditioning Hose For Bus
  • Air Conditioning Hose For Bus
  • Air Conditioning Hose For Bus
/ A/C hose assembly

Air Conditioning Hose For Bus

Product Structure Diagram
contact us
Sizes and performance parameters of type C air conditioner hose

Number Dimension.mm Inch I.D.  mm 0. D. mm Wall Thickness.mm Wall Diff Max. mm Work Pressure Max.MPa Burst Pressure
Min.MPa
Bend Rad
Min.mm
Weight.
g/m
A19 19 3/4" 18.5±0.5 27. 5±0. 6 4.5 0.5 3.5 15 105 428
A22 22.2 7/8" 22.0±0.5 30. 0±0. 6 4 0.6 3.5 15 125 420
A28.5 28.5 9/8" 28.5±0.5 40.0±0.6 5.75 0.6 1.5 15 150 831

Appliable refrigerant: R 134a / R 1234yf
Standard: SAE J2064 SAE J3062 QC/T664-2019

Sizes and performance parameters of type C air conditioner hose

Number Dimension.  mm Inch I.D.  mm 0. D. mm Wall Thickness.mm Wall Diff Max.mm Work Pressure Max.MPa Burst Pressure Min.MPa Bend Rad Min.mm Weight.  g/m
C19 19 3/4" 18.5 ±0.5 27.5±0.6 4.5 0.5 3.5 15 105 428
C22 22.2 7/8" 22.0 ±0.5 30.0±0.6 4 0.5 3.5 15 125 420
C28.5 28.5 9/8" 28.5 ±0.5 40.0±0.6 5. 75 0.5 1.5 12 150 831

Appliable refrigerant: R 134a / R 1234yf
Standard: SAE J2064 SAE J3062 QC/T664-2019
/ Experts are Here to Help you

Leave us a message

send message
/ WHO WE ARE

Kedali INDUSTRY

Zhejiang Kedali Industrial Co., Ltd. is committed to the R&D, production and sales of vehicle air condition hoses, hydraulic brake hoses, pneumatic brake hoses, adblue pipes, oil cooling pipes, power steering hoses, water pipes, oil pipes, vacuum brake hoses and tube assembly. As China Air Conditioning Hose For Bus manufacturers, With highly automated production capacity and rich management experience, the company has the ability to produce 40 million meters of various rubber hoses and 5 million sets of assemblies annually. With modern equipment and three-dimensional storage system, it can accommodate products pieces, better control the quality, ensure the inventory and timely delivery. As a well-known OEM Air Conditioning Hose For Bus factory, Kedali advocates the belief of “pursuit of excellence, integrity based”, takes the national model brand and industry product benchmark as its mission, and is dedicated to providing our partners with safe, reliable, cost-effective products and quality services.

  • 0+

    Industry experience
  • 0

    Plant area (㎡)
  • 0 million

    Annual output of various rubber hoses (m)
  • 0 million

    Assembly products (sets)
/ Our advantages

Guarantee High Quality With Our Expertise

The company has the internationally advanced production technology and equipment for automotive rubber hoses, and has jointly developed new products with many well-known research institutions and testing centers in China. In order to meet the needs of the continuous development of the automobile industry and the development of new technologies and products, the company has set up a research and development center and a product testing and testing center

/ Patent certificate and quality inspection certificate

Our Certifications

prev
next
/ Understand industry trends

News & Exhibitions

Industry Knowledge Development
An air conditioning hose for a bus is a specialized type of hose used in the air conditioning system of a bus. It is designed to transport refrigerant between the various components of the air conditioning system, including the compressor, condenser, evaporator, and expansion valve.

The air conditioning hose used in a bus is typically made of a flexible rubber or synthetic material, which allows it to bend and flex as needed while still maintaining its structural integrity. It also typically has a layer of insulation to prevent the refrigerant from losing its cooling properties as it travels through the hose.

When selecting an air conditioning hose for a bus, it is important to consider factors such as the operating temperature and pressure, the type of refrigerant being used, and the size and shape of the hose needed to fit the specific air conditioning system being used. It is also important to ensure that the hose meets any relevant safety and regulatory standards.

The performance characteristics of air conditioning hose for a bus will depend on several factors, including the type of hose material, size, and design. However, some common performance characteristics of air conditioning hoses for buses include:
1.Durability: Air conditioning hoses for buses should be able to withstand the harsh operating conditions and environment that buses typically encounter, such as vibrations, temperature changes, and exposure to UV radiation.
2.Flexibility: The hose should be flexible enough to allow for easy installation and bending around corners, while also maintaining its shape and integrity under pressure.
3.Heat resistance: Air conditioning hoses for buses should be able to withstand high temperatures and maintain their performance even in hot weather conditions.
4.Chemical resistance: The hose material should be resistant to chemicals, oils, and other substances commonly used in bus air conditioning systems.
5.Low permeation: Air conditioning hoses for buses should have low permeation rates to prevent refrigerant leakage, which can lead to system inefficiencies and potential environmental damage.
6.Pressure rating: The hose should be designed to withstand the pressure of the air conditioning system, which can vary depending on the type and size of the system.
Overall, the performance characteristics of air conditioning hoses for buses are critical to ensure efficient and reliable operation of the air conditioning system, which is essential for passenger comfort and safety.

The service life of an air conditioning hose for bus can vary depending on a number of factors, such as the quality of the hose, the operating conditions of the bus, and the frequency of maintenance and repairs.

Generally speaking, a high-quality air conditioning hose that is properly installed and maintained can last for many years of service. However, exposure to harsh environments, such as extreme temperatures, chemicals, and abrasive materials, can significantly reduce the service life of the hose.

To ensure the longest possible service life for an air conditioning hose in a bus, it is important to follow the manufacturer's recommendations for installation, use, and maintenance. This may include regular inspections for signs of wear or damage, such as cracks, bulges, or leaks, and prompt replacement of any damaged hoses. Additionally, proper storage and handling of the hose when it is not in use can also help to extend its service life.
